氣源處理件 — AW系列過濾減壓閥
技術參數

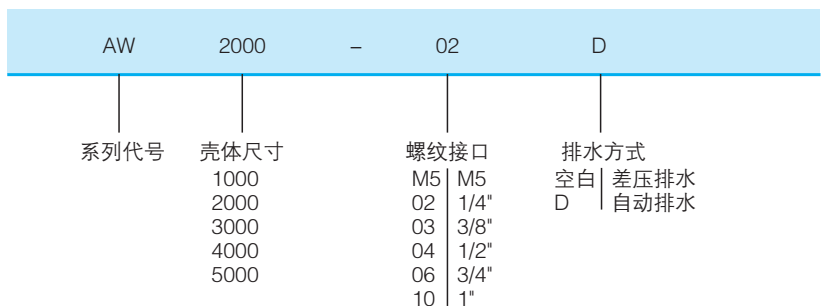

訂貨型號
技術參數
| 型號 | 規格 | |||
| 手動排水型 | 自動排水型 | 額定流量(L/min) | 接管口徑Rc(PT) | 壓力表口徑Rc(PT) |
| AW1000-M5 | AW1000-M5D | 100 | M5 | 1/16 |
| AW2000-02 | AW2000-02D | 550 | 1/4 | 1/8 |
| AW3000-02 | AW3000-02D | 2000 | 1/4 | 1/8 |
| AW3000-03 | AW3000-03D | 2000 | 3/8 | 1/8 |
| AW4000-03 | AW4000-03D | 4000 | 3/8 | 1/4 |
| AW4000-04 | AW4000-04D | 4000 | 1/2 | 1/4 |
| AW4000-06 | AW4000-06D | 4500 | 3/4 | 1/4 |
| AW5000-06 | AW5000-06D | 5000 | 3/4 | 1/4 |
| AW5000-10 | AW5000-10D | 5000 | 1/1 | 1/4 |
注:2000標準為常閉,3000-5000為常開
外型尺寸
圖形符號

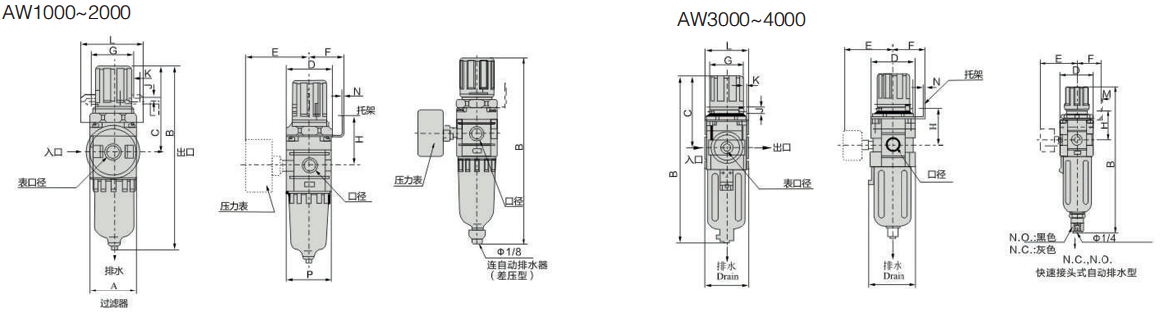

外型尺寸
| 型號 | 口徑 | A | B | C | D | E | F | G | H | J | K | L | M | N | P | 連自動排水器 B |
| AW1000-M5 | M5x0.8 | 25 | 108 | 2/19 | 1/25 | 33.5 | 25 | 28 | 30 | 4.5 | 6.5 | 40 | 1.8 | 18.5 | 25 | 127 |
| AW2000-01/02 | 1/8·1/4 | 40 | 160 | 3/14 | 2/9 | 53 | 33 | 33.5 | 43 | 5.5 | 15 | 55 | 1.8 | 33.5 | 40 | 181 |
| AW3000-02/03 | 1/4·3/8 | 53 | 207 | 3/29 | 2/22 | 54.5 | 41 | 36 | 47 | 6.5 | 11.5 | 54 | 1.8 | 42.5 | 55 | 245 |
| AW4000-03/04 | 3/8·1/2 | 70 | 259 | 4/18 | 3/10 | 60 | 49 | 53 | 52 | 8.5 | 10.5 | 70 | 1.8 | 52.5 | 72 | 276 |
| AW4000-06 | 3/4 | 75 | 263 | 4/20 | 3/10 | 66 | 49 | 53 | 56 | 8.5 | 10.5 | 70 | 1.8 | 52.5 | 72 | 281 |
| AW5000-06/10 | 3/4·1 | 90 | 339 | 4/26 | 3/30 | 70 | 49 | 53 | 62 | 8.5 | 10.5 | 70 | 1.8 | 52.5 | - | 356 |
