執行元件DNC系列標準氣缸
技術參數

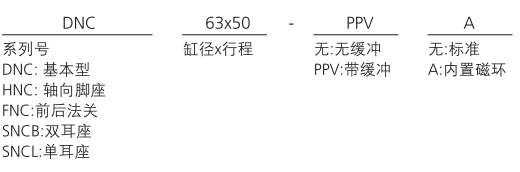

訂貨型號



技術參數

缸徑3240506380100
動作型式雙動
工作介質空氣(經40um過濾的潔凈空氣)
使用壓力0.1~0.9Mpa(1~9kgf/cm2)
保證耐壓力1.35Mpa(13.5kgf/cm2)
工作溫度范圍-5~60℃(未凍結)
緩沖型式氣緩部(標準)
緩沖行程2432
接管口徑1/8"1/4"3/8"1/2"
本體材質鋁合金


氣缸行程

缸徑標準行程最大行程容許行程
3225 50 75 100 125 150 175 200 250 300 350 400 50010002000
4025 50 75 100 125 150 175 200 250 300 350 400 500 600 700 80012002000
5025 50 75 100 125 150 175 200 250 300 350 400 500 600 700 800 900 100012002000
6325 50 75 100 125 150 175 200 250 300 350 400 500 600 700 800 900 100015002000
8025 50 75 100 125 150 175 200 250 300 350 400 500 600 700 800 900 100015002000
10025 50 75 100 125 150 175 200 250 300 350 400 500 600 700 800 900 100015002000
12525 50 75 100 125 150 175 200 250 300 350 400 500 600 700 800 900 100015002000
16025 50 75 100 125 150 175 200 250 300 350 400 500 600 700 800 900 100015002000

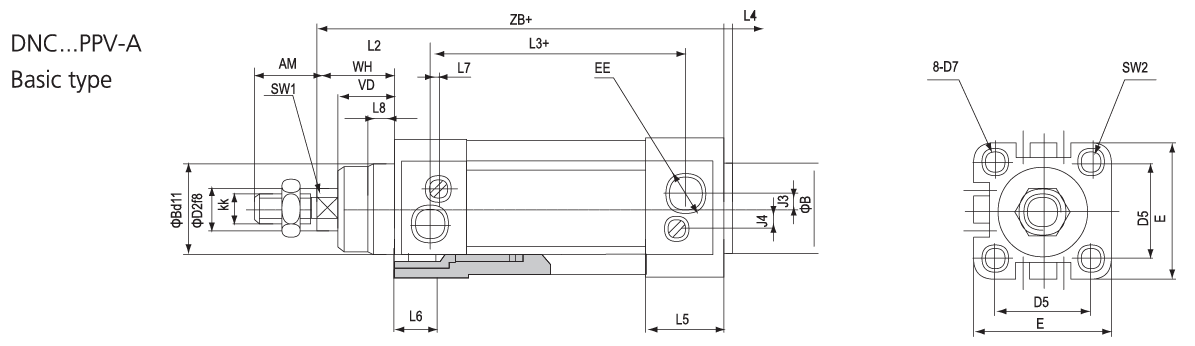

外型尺寸




缸徑AMED2D5D7EEE(G)J3J4KKL2L3L4L5L6L7L8SW1SW2VDWHZB
3222301232.5M6451/865.2M 10×1.2541.662.8425.1163.3101061826120
4024351638M6541/486M12×1.254477429.6163.610.513621.530135
5032402046.5M8641/4108.5M16×1.55178429.6175.111.51782837143
6332452056.5M8753/812.410M16×1.55487435.6176.61517828.537158
8040452572M10933/812.58M20×1.552.495.2435.91710.515.7221034.746174
10040552589M101001/211.810M20×1.569.8100.4438.8100819.2221038.251189

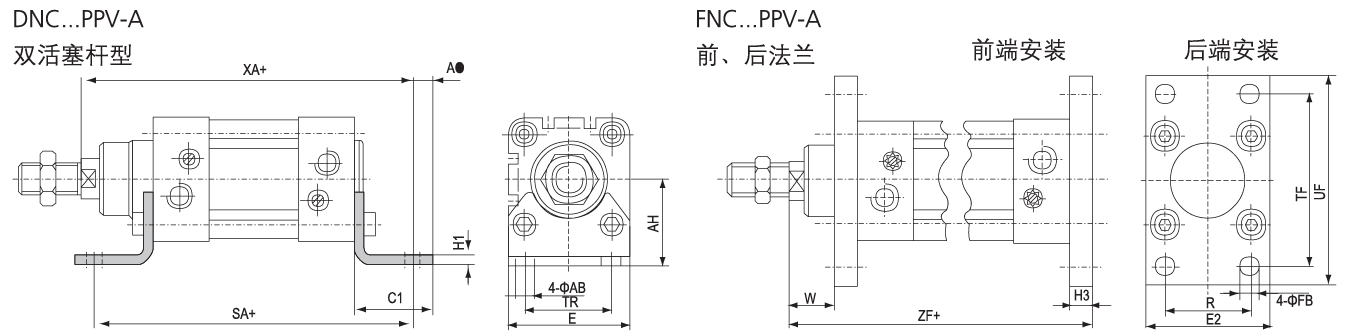

缸徑ABAHAOC1EH1SATRXAE2H13H3RTFUFWZF
327326.530.5455142321445071032648016130
401036937545161361635591036729020145
50104510.541.56461704517565912459011025155
63105012.544.575618550190759125010012525170
80126315569362106321510012166312615430190
100147117.558.510062207823012014167515018635205

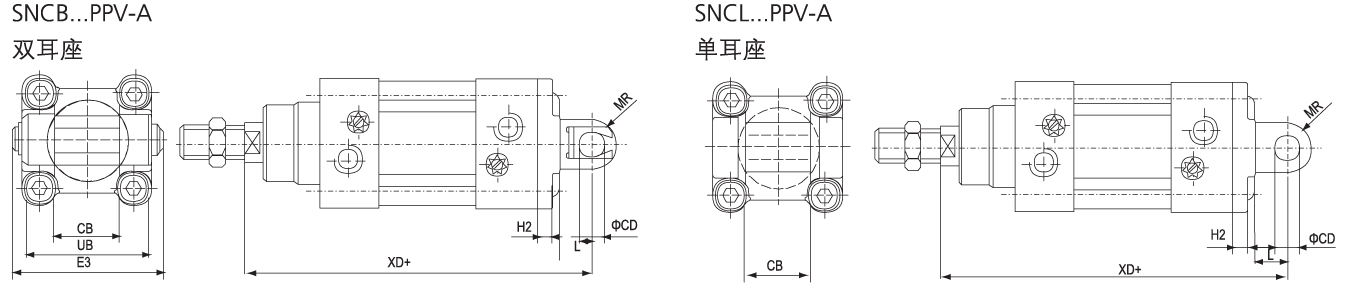

缸徑CBDBE3H2LMRUBXD
322610556131045142
402812636161252160
503212717161260170
634016837211670190
80501610310.5221690210
100602012710.52720110230
